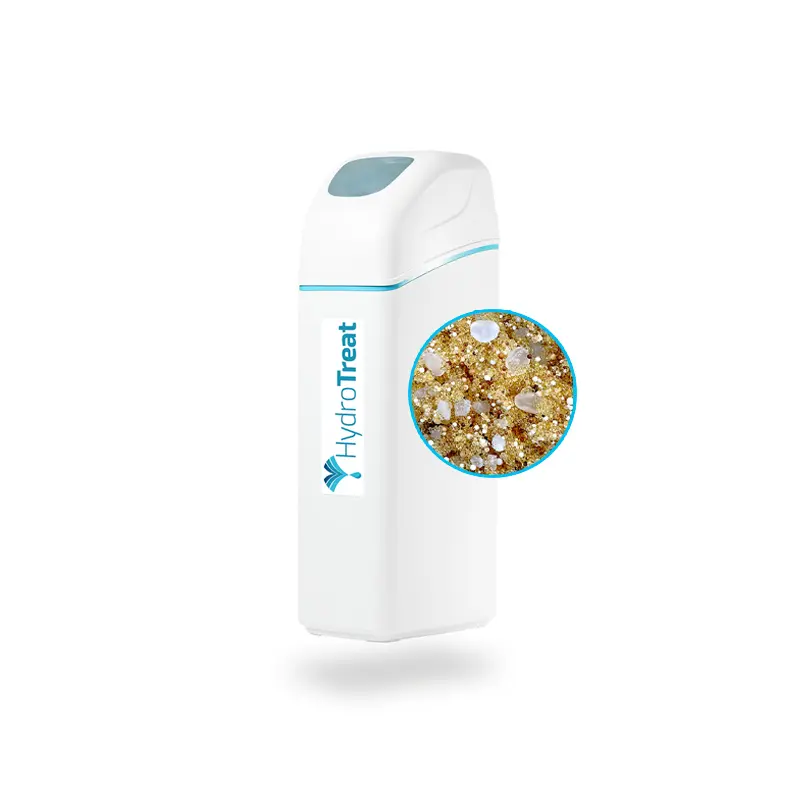

HydroTreat COMFORT 1.2 with Ecomix A filter media – multifunctional filter for well water treatment
Central solution for well water treatment without compromises
The multifunctional filter HydroTreat COMFORT 1.2 with Ecomix A filtration material is a compact, fully automatic device designed for comprehensive treatment of well water in family homes.
Devices with Ecomix filtration material are water treatment systems that remove iron, manganese, ammonium ions, organic impurities, and also soften water, all within a single filtration unit.
This model is suitable for water with a moderate content of organic substances and ensures stable quality of treated water even with fluctuations in input parameters.
Key features and benefits of the device
- Effective Treatment of Well Water – Solving Five Problems with One Filter
- Removal of iron, manganese, ammonium ions, and organic substances
- Water softening and removal of limescale
- Clean and soft water without a metallic taste
- Improvement of water color and reduction of odor
- Balancing changes in water composition without significant fluctuations in the quality of treated water
- Completely automatic operation without the need for manual intervention in the control head
- Refilling of regeneration salt approximately every 2-3 months (depending on actual usage).
Comfort and technology
- Pre-configured device – no programming is required after installation
- Fully automatic regeneration controlled by water volume
- Intelligent counterflow regeneration – low salt consumption
- Built-in mixing valve – option to adjust the final water hardness
- During regeneration, it does not supply untreated water to the system
- Protection against brine tank overflow
- Built-in protective tube and salt grid
- Multilingual LCD display (CZ, HU, EN, DE, RS, RO)
- Space-saving compact design
Why choose the HydroTreat COMFORT multifunctional filter with Ecomix A material
- Complex solution in one filter - Removes iron, manganese, ammonium ions, and organic substances while also softening the water. There is no need to combine multiple separate filters.
- Stable water quality even with parameter fluctuations - The Ecomix A filtration medium balances changes in the composition of the incoming water without significant fluctuations in the quality of the treated water.
- Pure water without a metallic taste and odor - Improves the color of the water, eliminates unpleasant odors, and ensures a pleasant taste.
- Fully automatic operation without worries - The device is pre-set - no programming is required after installation. Regeneration occurs automatically based on water consumption.
- Efficient regeneration - Intelligent counterflow regeneration reduces salt consumption and operating costs.
- Adjustable hardness of the output water - The built-in mixing valve allows you to customize the final hardness according to the household's requirements.
- Without the supply of untreated water during regeneration - The device does not supply raw water to the system during the regeneration cycle.
- System safety and protection - Overflow protection, a protective tube, and a salt grid increase operational reliability.
- Modern and compact solution - Multilingual LCD display and space-saving design suitable for smaller technical rooms.
What is Ecomix material?
Multifunctional filtration material Ecomix A is a multi-component filtration material designed for treating problematic well or tap water with a moderate content of organic substances. It helps achieve clean, soft, and well-treated water for everyday use.
The Ecomix filter medium is regenerated with salt that needs to be monitored to ensure that a sufficient amount is available for regeneration purposes. Regeneration occurs automatically through the control head – the device draws in and flushes the salt solution. In typical sizing, regeneration is estimated to occur approximately once a week, and it is important to know the water hardness and the maximum hourly and monthly consumption for the proper filter size design.
Technical parameters
- Size and type of connection: 1" external thread
- Flow capacity: 1.0 – 1.2 m³/h
- Min. required flushing: 0.75 m³/h
- Filter area: 0.05 m2
- Filtration material: Ecomix A – 25 l
- Bypass valve*: COMFORT Bypass-1
- Brine reservoir: Built-in
- Dimensions (H×W×D): 1080 × 320 × 500 mm
- Weight (dry, without salt): 33.1 kg
*The bypass valve is not included in the basic package.
Flow velocities
- Operation: 20 - 25 m/h
- Backwashing: 10 - 15 m/h
- Regeneration: 3 - 5 m/h
Regeneration consumption
- Salt consumption/regeneration: ~ 100 g/1 l Ecomix
- Water consumption/regeneration: ~ 5 l/1 l Ecomix
Operating conditions and requirements for source water
- Optimal bed height: 800 mm
- Minimum bed height: 500 mm
- Free content: ≥ 40% of the bed height
- Total Dissolved Solids (TDS): <4000 mg/l
- Water temperature: 4 - 40 °C
- pH range of water: 5.0 - 9.0
- Hardness (CaCO₃): ≤ 750 mg/l ≈ 45 °dH
- Iron: <15 mg/l
- Manganese: <3 mg/l
- CHSK-Mn (KMnO4): ≤ 12 mg/l
- Ammonium ions: <4 mg/l
- Chlorine: ≤ 0.5 mg/l
We recommend
- We recommend installing before the water softener mechanical pre-filterthat prevents the entry of floating impurities (sand, rust, clay, etc.) that could damage the mechanical components of the softening device.
- To choose the right size, you need to to know the hardness of waterthe peak hourly and average monthly water consumption, and last but not least, also take into account other values such as iron, manganese, ammonia, and organic water pollution. To do this, it is essential to have, or perform a water analysis.
. If you need help determining the correct size, don't hesitate to contact us.
