Sedimental Water Filter Cintropur NW25 1"
Catalog code: C1
Pipe mechanical water filter Cintropur NW25 1"
Key features of the Cintropur filter
- Exclusive and eco-friendly high-flow filtration system
- Professional and reliable equipment
- Low pressure drop
- Resistance to high pressure
- Simple sealing thanks to multiple rings
- First-class quality and synthetic materials
- Long lifespan and permanently available spare parts
- Basic 25 µm the fineness of filtration (there is an option for 5 µm)
Contents of the package
- independent Cintropur filter
- assembly key
- filter cartridge (25 µm)
- threaded connectors (2 pcs)
- sealing O-ring
Parameter
| Connection | 1" or 3/4" |
| Average flow |
5,5 m³/h
|
| Max. flow | 10 m³/h |
| Filter area | 450 cm² |
| Filtration fineness | 25 µm |
| Working pressure | 10 bar |
| Maximum pressure | 16 bar |
| Working temperature | 5 - 50 °C |
| Dimensions (H × W) | 235 × 269 mm |
| Weight | 1,2 kg |

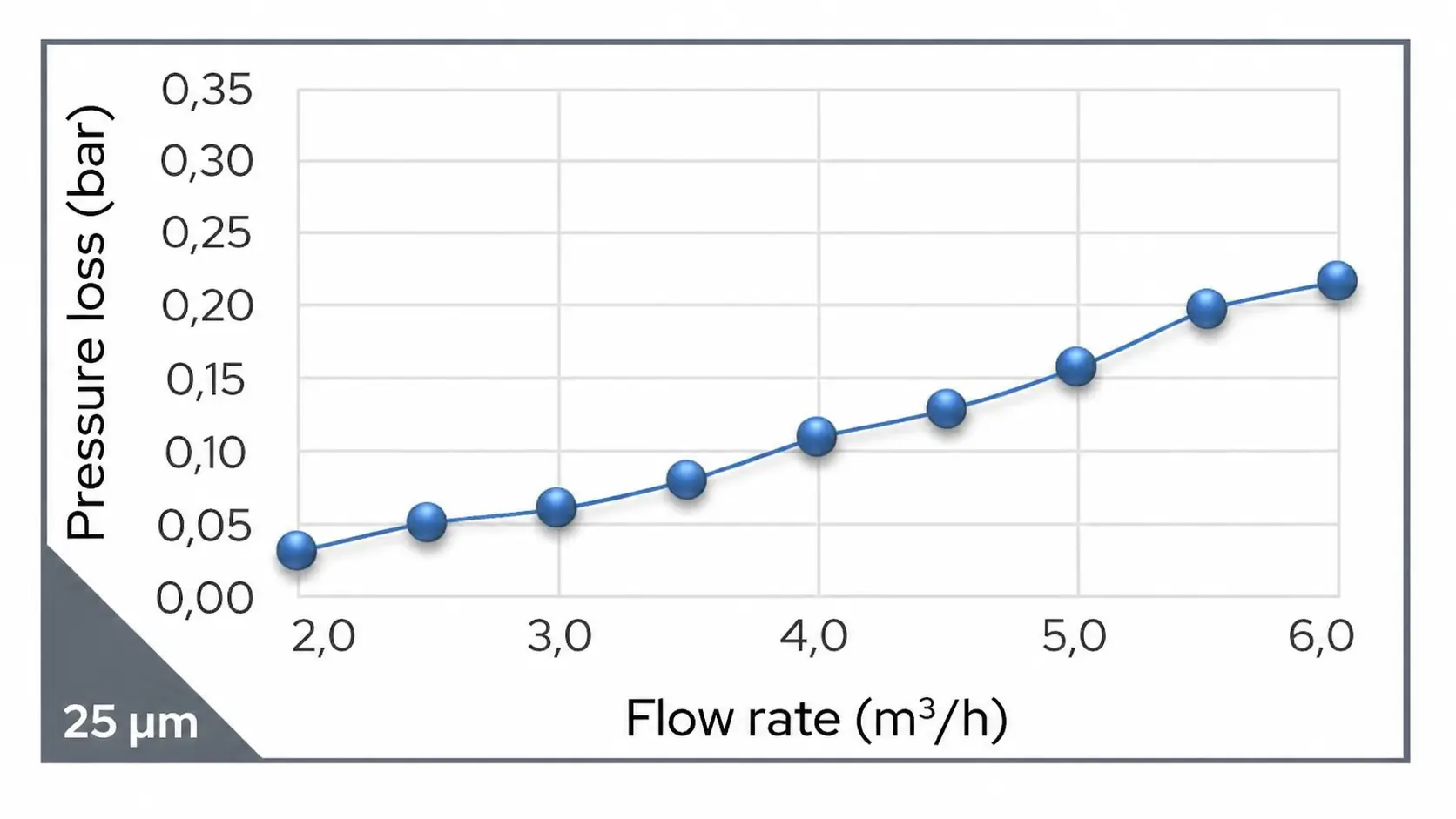

Flow at pressure drop of Cintropur NW25 filter with 25 µm

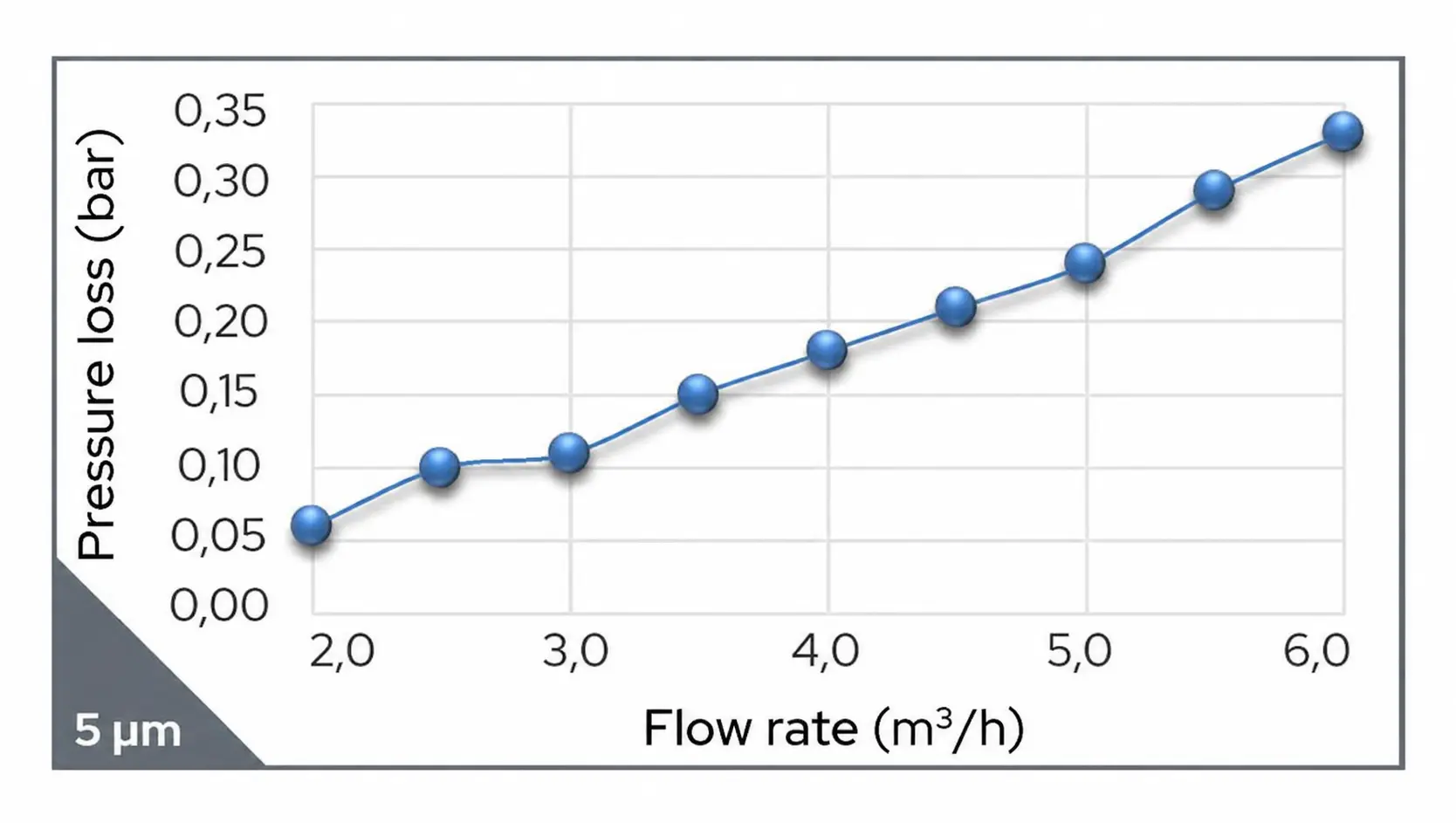

Flow at pressure drop of Cintropur NW25 filter with 5 µm
Flow at pressure drop of Cintropur NW25 filter with 25 µm
Flow at pressure drop of Cintropur NW25 filter with 5 µm
