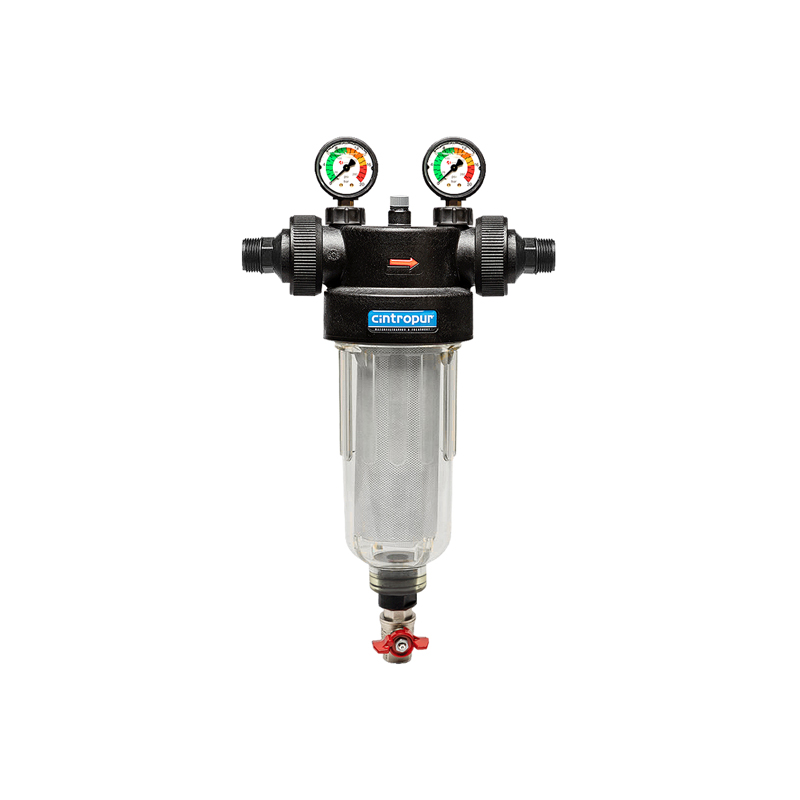

Cintropur NW280 1" Pipe Mechanical Water Filter for Home, Professional, and Industrial Use
Key features of the filter
- Low pressure drop
- High flows
- Resistance to high pressure
- Exclusive, eco-friendly, and affordable filtration system
- Simple sealing thanks to multiple rings
- Long lifespan and permanently available spare parts
- Professional, robust, and reliable equipment
- 25 µm the fineness of filtration (there is an option for 5 µm)
Technical specifications
| Connection | 1" |
| Flow (∆P 0.2 bar) |
7 m³/h
|
| Flow (∆P 0.5 bar) | 10 m³/h |
| Filter area | 530 cm² |
| Dimensions (H × W) | 472 × 284 mm |
Additional data
| Operating pressure | 10 bar |
| Max. water pressure |
16 bar |
|
Max. temperature | 50 °C |
| Filtration finesse | 25 µm |
| Weight | 2,2 kg |

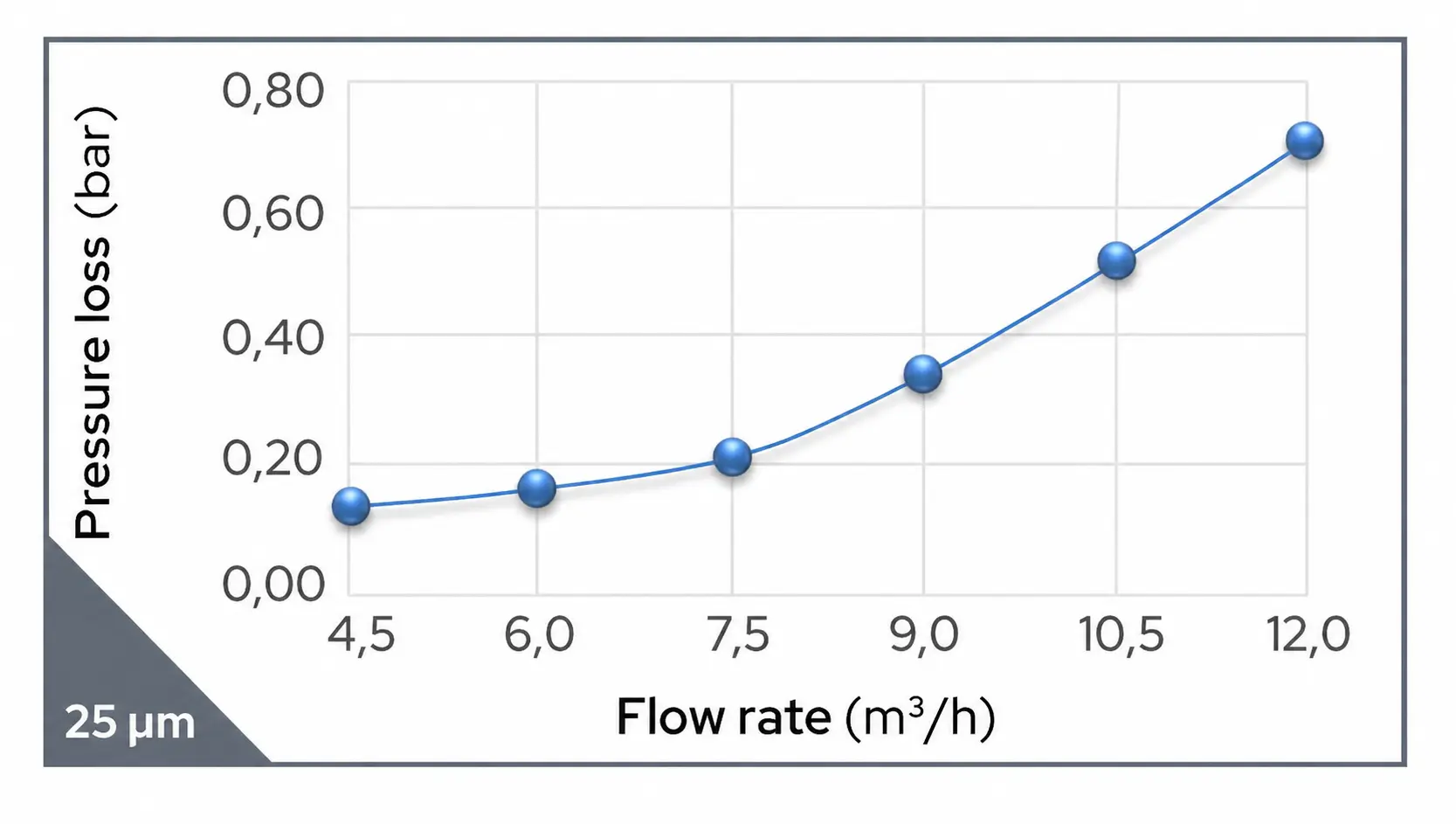

Flow at pressure drop with a filtration fineness of 25 µm

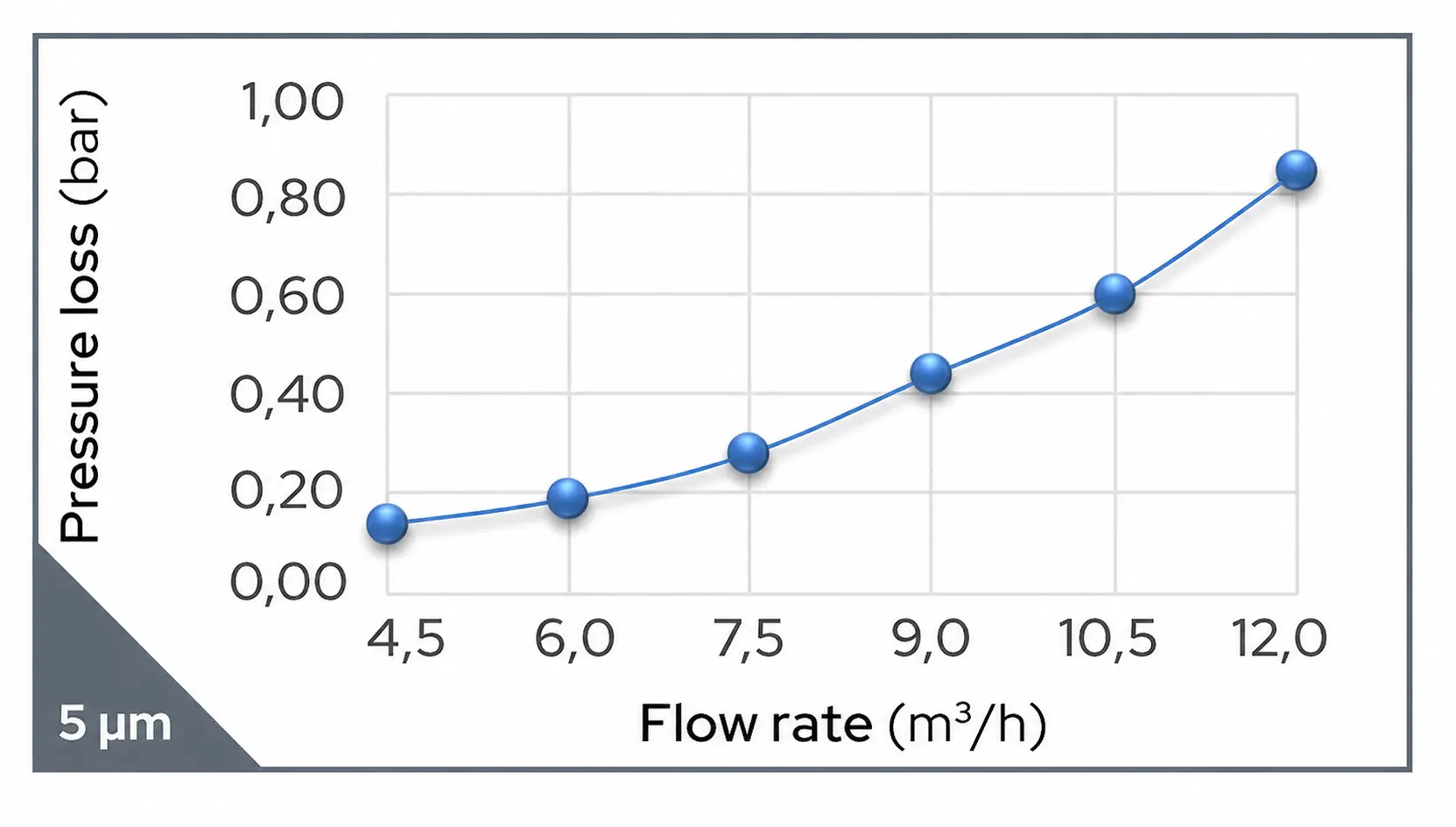

Flow at pressure drop with a filtration fineness of 5 µm
Flow at pressure drop with a filtration fineness of 25 µm
Flow at pressure drop with a filtration fineness of 5 µm
