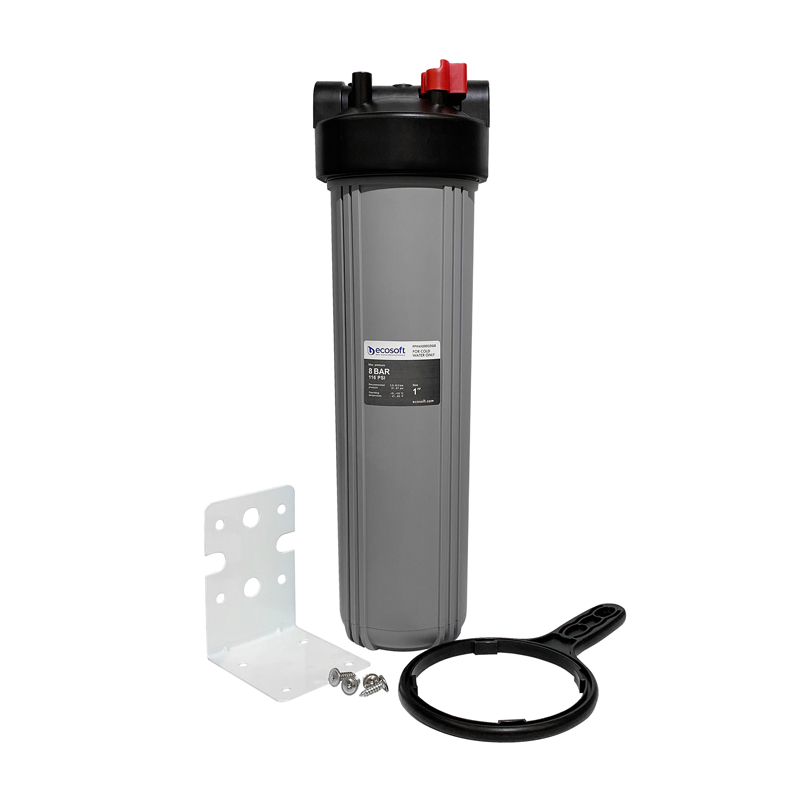

Ecosoft BigBlue 20" filter housing with air vent valve - complete set, without filter cartridge
- Ecosoft BigBlue 20" is a filter cartridge housing with a vent valve and a collet connection designed for pre-filtration or treatment of cold water.
- Inline filtration extends the lifespan of water treatment facilities, pipes, appliances, etc.
- It is made from durable and high-quality European food-grade plastic, which is also suitable for drinking water.
Using the Big Blue 20 Filter
- as a pre-filter before the softening device to protect it from mechanical impurities (sand, gravel, rust, clay, mud, etc.)
- for carbon filtration (for the removal of chlorine and its compounds, or to improve the taste and odor of water)
- or also separately with various* inserts measuring 20 x 4.5"
*Since the filter has a diameter of 4" - compared to other 20-inch filters - it has a larger filtration area, resulting in lower pressure drop.
The BigBlue 20" filter housing is compatible with several types of filter cartridges
- sedimentation filter cartridges made of molded or wound polypropylene (PP)
- filter cartridges with activated carbon (CTO, GAC)
- empty filter canisters for water treatment
Big Blue 20" case parameters
| Manufacturer | Ecosoft |
| Connection |
1" internal thread |
| Max. flow | ~ 83 L/h |
| Size of inserts | ⌀4,5" × 20" |
| Working water pressure | 3.5 - 6 | max. 8 bar |
| Working water temperature | 3 - 43 °C |
| Dimensions (H × W × D) | 615 × 185 × 185 mm |
| Weight | 3,8 kg |
Contents of the package
- BigBlue 20 filter case,
- Installation/service key,
- Wall mounting bracket with screws (4 pcs),
- User Manual
