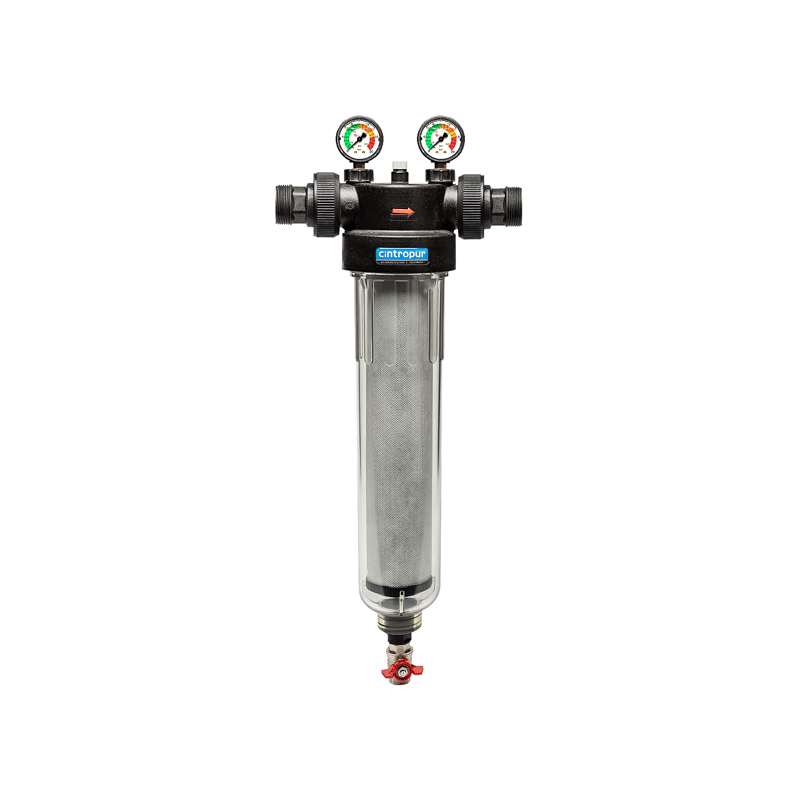

Industrial pipeline mechanical water filter Cintropur NW400 6/4"
Characteristics and Advantages of Cintropur Filters
- Low pressure drop
- High flows
- Resistance to high pressure
- Exclusive, eco-friendly, and affordable filtration system
- Simple sealing thanks to multiple rings
- Long lifespan and permanently available spare parts
- Professional, robust, and reliable equipment
- Basic 25 µm the fineness of filtration (there is an option for 5 µm)
Technical specifications
| Connection | 6/4" |
| Flow (∆P 0.2 bar) |
12,0 m³/h
|
| Flow (∆P 0.5 bar) | 18,0 m³/h |
| Filter area | 1010 cm² |
| Dimensions (H × W) | 675 × 284 mm |
Additional data
| Operating pressure | 10 bar |
| Max. water pressure | 16 bar |
| Max. water temperature | 50 °C |
| Filtration finesse | 25 µm |
| Weight | 2,9 kg |

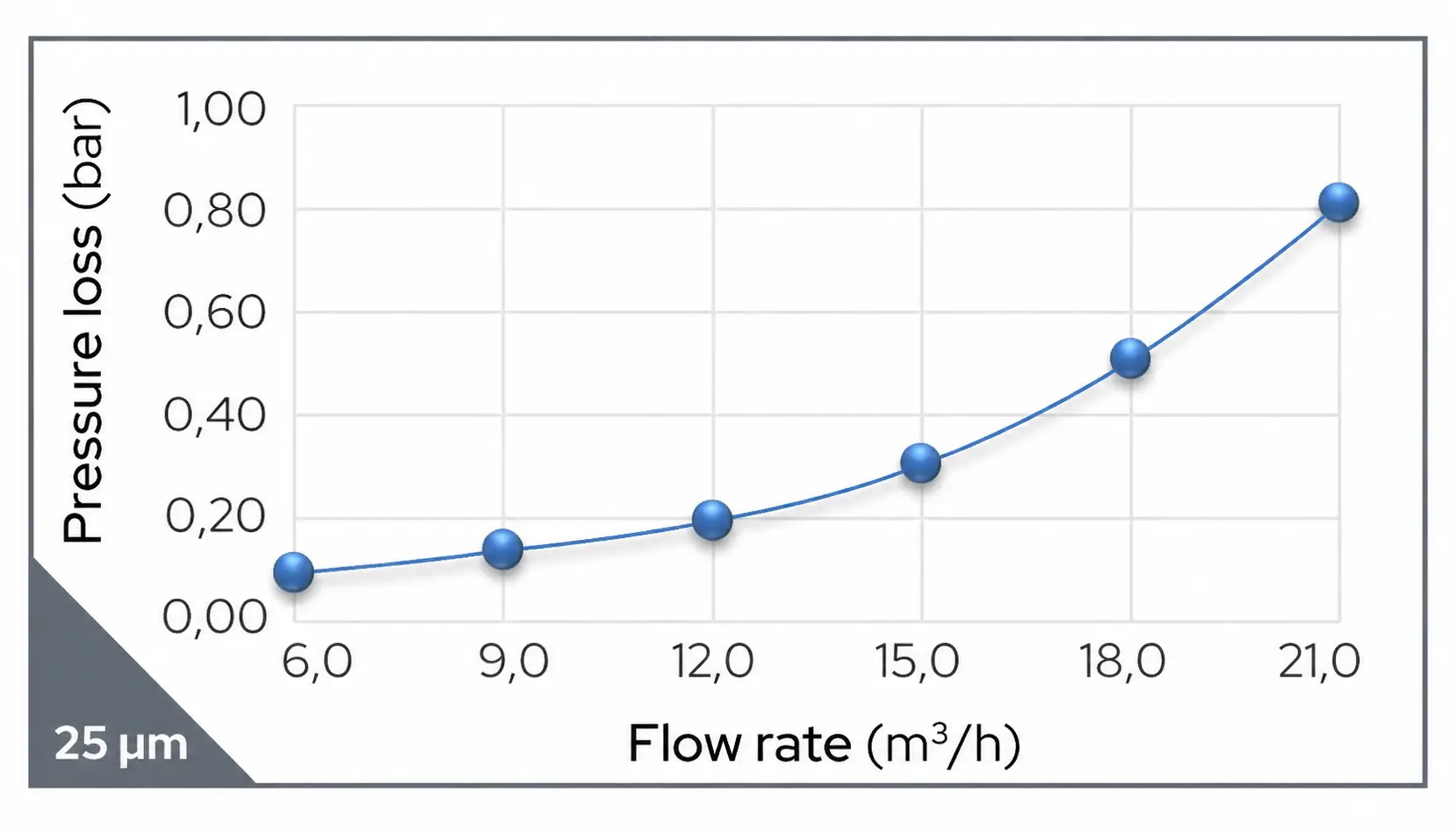

Flow at pressure drop of Cintropur NW400 filter with 25 µm

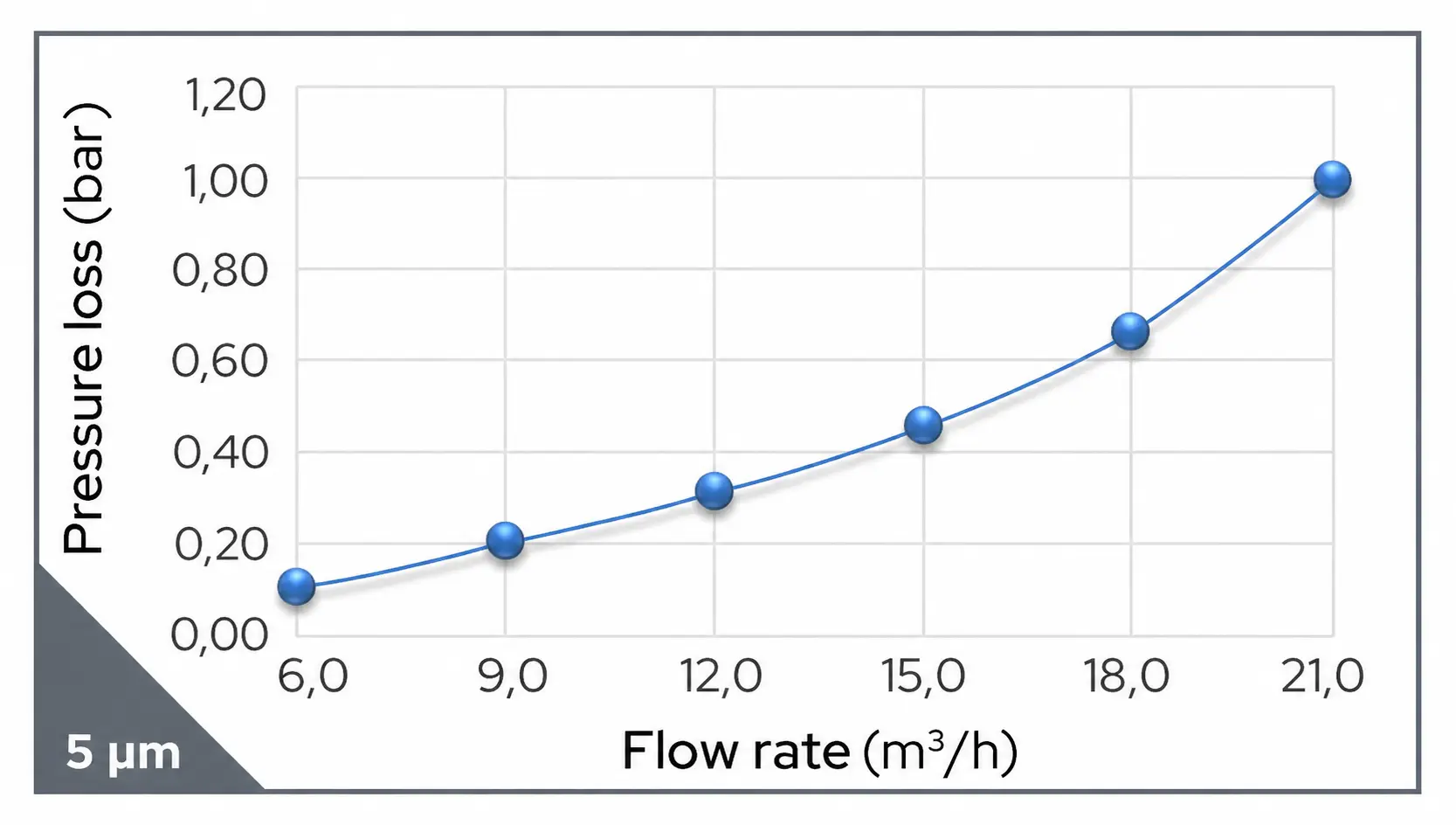

Flow at pressure drop of Cintropur NW400 filter with 5 µm
Flow at pressure drop of Cintropur NW400 filter with 25 µm
Flow at pressure drop of Cintropur NW400 filter with 5 µm
