Cintropur UV 4100, UV lampa na dezinfekciu vody

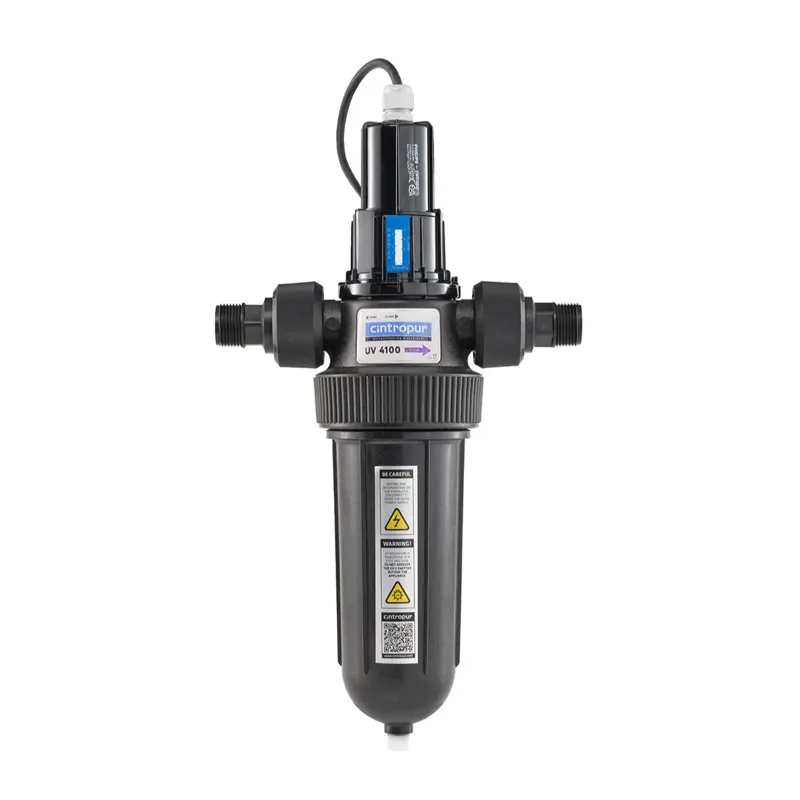

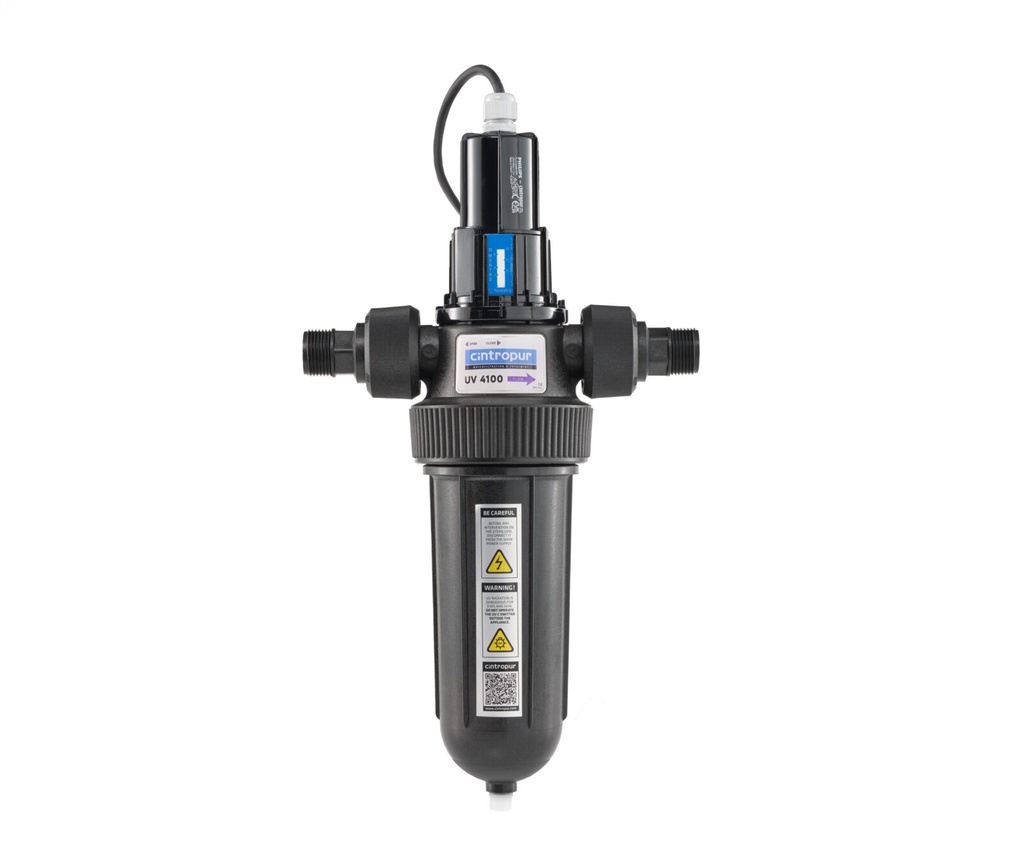

UV lampa na dezinfekciu vody Cintropur UV 4100 (NW4100)

Cintropur UV 4100 je UV lampa na dezinfekciu vody, ktorá spoľahlivo zneškodňuje baktérie a vírusy pomocou UV-C žiarenia. Je to nový model priamo od belgického výrobcu Cintropur – s robustnou európskou konštrukciou, kvalitnou UV lampou (Philips) a minimálnou údržbou: raz ročne vymeníte žiarič a máte pokoj.

Compared to the Cintropur 2100, the Cintropur 4100 offers higher performance (40 W) and is suitable for increased water consumption or where you want a greater flow reserve.

Prečo si vybrať Cintropur UV 4100

• Chlorine-free disinfection – without chemicals and without by-products
• It does not change the taste or composition of water – UV addresses microbiology, not minerals
• High efficiency – with proper design and pre-filtration, it can reduce bacterial contamination by up to 99.99%
• Stronger performance for larger flows – 40 W UV lamp, max. flow rate up to approx. 2.1 m³/h
• Simple maintenance – the complete lamp with source is replaced once a year (handled as one part)
• Quick bayonet change – you detach the bayonet, replace the part, and snap it back in; the change is quick and practical
• Durable European construction – robust, certified materials, Belgian manufacturing
• More stable performance in practice – the built-in flow limiter helps maintain the correct disinfection mode
• Practical venting/decanting – Teflon decanting screw element for draining water from the chamber or relieving pressure

Prietok a výkon – čo je dôležité vedieť?

• Výkon UV žiarivky: 40 W
• At the standard specified dose of 40 mJ/cm², the recommended nominal flow rate is approximately 1.3 m³/h
• Maximum flow rate: approximately 2.1 m³/h (depends on the required UV dose and water quality)

In practice, it always holds true: the more turbid the water is or the more iron/manganese it contains, the more the effectiveness of UV can decrease. Therefore, it is important to properly set up pre-filtration and flow rate.

Ak chcete, nastavíme návrh tak, aby UV lampa pracovala v správnom režime podľa Vašej vody a spotreby.

Maintenance and service

• Výmena UV žiariča: 1× ročne (účinnosť je približne 12 mesiacov)
• Výmena je riešená bajonetovým systémom – je rýchla a jednoduchá.

• Životnosť UV žiariča: ~9 000 hodín (cca 1 rok)
• Kremenná trubicaKremenná trubica: výrobca odporúča vymeniť najneskôr po 5 rokoch alebo podľa znečistenia.

Recommended pre-filtration

It is recommended to have mechanical filtration of at least 25 microns, ideally 5 µm, before the UV lamp. The reason is simple: turbidity and impurities can "shade" UV radiation and reduce the effectiveness of disinfection.
