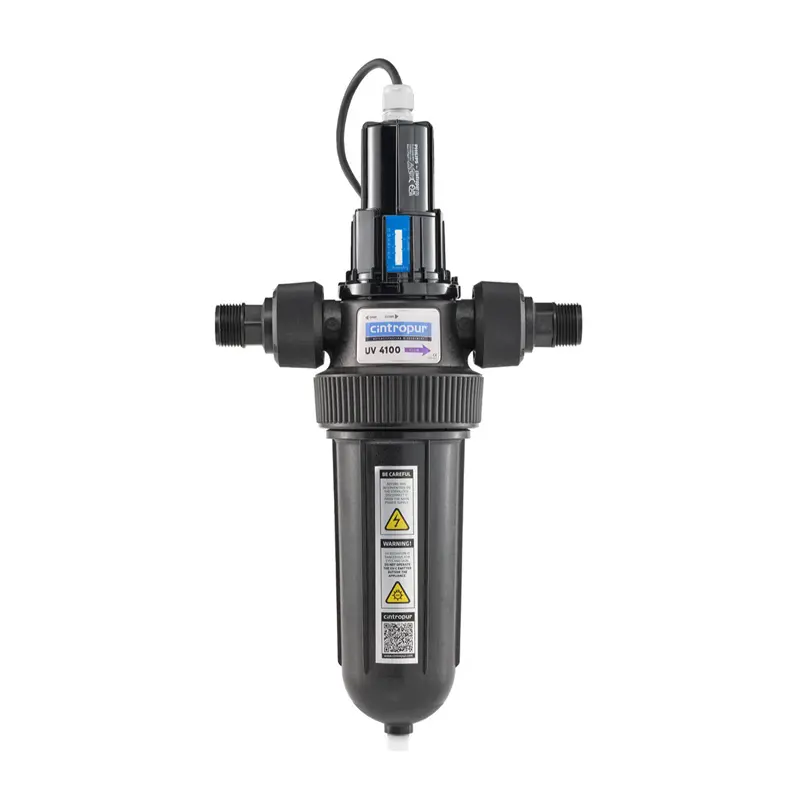

Cintropur UV 4100 (NW4100) is a powerful UV lamp for water disinfection that reliably eliminates bacteria, viruses, and cysts using UV-C radiation – without chemicals and without altering the taste of the water. Cintropur UV lamps are built on the proven design of this brand: inside the opaque black housing, there is a polished stainless steel cylinder (reactor/reflector), a quartz tube, and within it, a UV emitter.
Compared to the Cintropur 2100, the Cintropur 4100 offers higher performance (40 W) and is suitable for increased water consumption or where you want a greater flow reserve.
Why choose her
- Chlorine-free disinfection – without chemicals and without by-products
- It does not change the taste or composition of water – UV addresses microbiology, not minerals
- High efficiency – with proper design and pre-filtration, it can reduce bacterial contamination by up to 99.99%
- Stronger performance for larger flows – 40 W UV lamp, max. flow rate up to approx. 2.1 m³/h
- Simple maintenance – the complete lamp with source is replaced once a year (handled as one part)
- Quick bayonet change – you detach the bayonet, replace the part, and snap it back in; the change is quick and practical
- Durable European construction – robust, certified materials, Belgian manufacturing
- More stable performance in practice – the built-in flow limiter helps maintain the correct disinfection mode
- Practical venting/decanting – Teflon decanting screw element for draining water from the chamber or relieving pressure
How the Cintropur 4100 UV lamp works
Water flows through the UV reactor around a UV-C lamp placed in a quartz tube. The polished stainless steel cylinder inside the UV chamber reflects UV radiation, thereby increasing the efficiency of irradiation. UV-C radiation with a wavelength of 253.7 nm disrupts the DNA of microorganisms and prevents them from reproducing – effectively neutralizing them.
UV disinfection is an ecological method: it does not add anything "extra" to the water, does not change the pH or mineral content, and does not create harmful by-products.
Flow and power
- Power of UV lamp: 40 W
- At the standard specified dose of 40 mJ/cm², the recommended nominal flow rate is approximately 1.3 m³/h
- Maximum flow rate: approximately 2.1 m³/h (depends on the required UV dose and water quality)
In practice, it always holds true: the more turbid the water is or the more iron/manganese it contains, the more the effectiveness of UV can decrease. Therefore, it is important to properly set up pre-filtration and flow rate.
Recommended pre-filtration
It is recommended to have mechanical filtration of at least 25 microns, ideally 5 µm, before the UV lamp. The reason is simple: turbidity and impurities can "shade" UV radiation and reduce the effectiveness of disinfection.
Maintenance and service
- Replacement of UV lamp + source: 1× per year (supplied as one complete set)
- UV lamp lifespan: approx. 9000 hours
- Quartz tube: the manufacturer recommends changing it a maximum of once every 5 years or according to contamination
Technical parameters
| Nominal flow | approximately 1.3 m³/h (at a UV dose of 40 mJ/cm²) |
| Flow capacity | ≤ 2.1 m³/h (at a water temperature of 30 °C and a UV dose of 25 mJ/cm²) |
| Wavelength (UV-C radiation) | 253.7 nm |
| Energy consumption | 40 W (±10 %) |
| Lifetime of UV lamp | 9000 hours |
| Working water temperature | 5 - 40 °C, ≤ 50 °C |
| Water pressure (working/maximum)* | 1,4 - 8,6 bar/≤ 16 bar |
| Size and type of connection | 3/4" to 1", threaded |
| Electrical power supply | 200 - 250 V, 50/60 Hz |
| Materials | black plastic/polished stainless steel/quartz glass |
| Country of production | Belgium |
| Dimensions (H × W × D) | 492 × 270 × 155 mm |
| Weight | 1,70 kg |
*Pressure test at 25 bars.
Contents of the package
- UV lamp Cintropur UV 4100
- UV lamp with power supply and power cable
- protective quartz tube UV lamp + O-rings (3 pcs)
- stainless steel wall mounting bracket + screws (4 pcs)
- reductions/connections 3/4" (2 pcs) and 1" (2 pcs) + coupling nuts (2 pcs)
- sealing O-rings (3 pcs)
- wrench/service key
- teflon sludge draining/venting screw element
Who is it suitable for
Family homes, cottages, restaurants, laboratories, healthcare facilities, and industry – everywhere you want to have microbiologically safe water without chemicals and at the same time need higher performance/flow.
