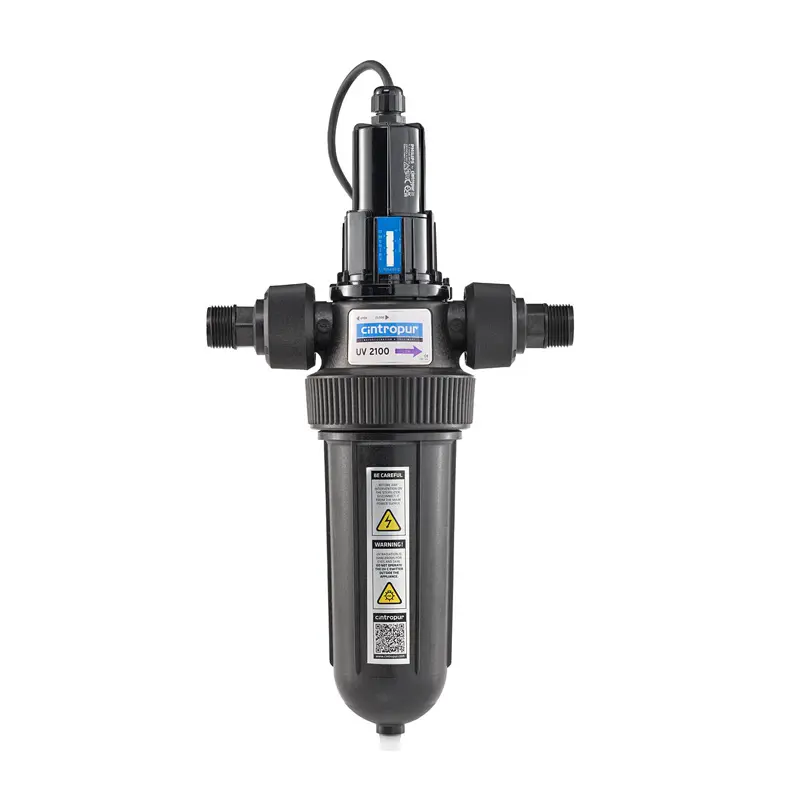

Cintropur UV 2100 is a UV lamp for water disinfection that reliably eliminates bacteria and viruses using UV-C radiation. It is a new model directly from the Belgian manufacturer Cintropur – featuring a robust European design, a high-quality UV lamp (Philips), and minimal maintenance: you replace the bulb once a year and you're good to go.
Why choose her
- Chlorine-free disinfection – no chemicals, no by-products
- It does not change the taste or composition of the water – UV only neutralizes microorganisms
- Simple maintenance – replace the bulb once a year (the rest is hassle-free)
- Quality construction Cintropur – stainless steel reflector, quartz tube, Belgian manufacturing
- Excellent compatibility – ideal for the mechanical and carbon filter Cintropur (e.g., NW25)
- Quick effect – disinfection occurs during flow through the UV chamber
How UV lamp works
Water flows through the UV reactor around a UV-C emitter placed in a quartz tube. The interior consists of a polished stainless steel cylinder that reflects UV radiation to enhance the effect. UV-C radiation with a wavelength of 253.7 nm disrupts the DNA of microorganisms and prevents them from reproducing – effectively neutralizing them.
UV disinfection is an ecological method: it does not add anything "extra" to the water and does not change its physical-chemical properties.
Flow and power – what is important to know
- The UV lamp has a power of 25 W.
- At the standard specified dose of 40 mJ/cm², the recommended nominal flow rate is approximately 1.1 m³/h.
- The maximum flow is approximately stated to be up to 1.7 m³/h (depending on conditions).
- In practice, it is often stated as "flow rate up to 2.0 m³/h" – however, the actual safe flow rate always depends on the required UV dose and the quality of the water (turbidity/iron/manganese).
If you want, we will adjust the design so that the UV lamp operates in the correct mode according to your water and consumption.
Recommended pre-filtration
It is recommended to have mechanical filtration of at least 25 microns, ideally 5 μm, before the UV lamp. The reason is simple: turbidity and impurities can "shade" UV radiation and reduce the effectiveness of disinfection.
Maintenance and service
- Replacement of UV lamp: once a year (effectiveness is approximately 12 months).
- The exchange is handled by a bayonet system – it is quick and easy.
- Quartz tube: the manufacturer recommends changing it a maximum of once every 5 years or according to contamination. (In our terminology: replacement quartz tube.)
Technical parameters
| Nominal flow | approximately 1.1 m³/h (at UV dose 40 mJ/cm²) |
| Flow capacity | max. 1.7 m³/h (at a water temperature of 30 °C and a UV dose of 25 mJ/cm²) |
| Wavelength (UV-C radiation) | 253.7 nm |
| Energy consumption | 25 W (±10 %) |
| Lifetime of UV lamp | 9000 hours |
| Working water temperature | 5 - 40 °C, ≤ 50 °C |
| Water pressure (working/maximum)* | 1,4 - 8,6 bar/≤ 16 bar |
| Size and type of connection | 3/4" to 1", threaded |
| Electrical power supply | 200 - 250 V, 50/60 Hz |
| Materials | black plastic/polished stainless steel/quartz glass |
| Country of production | Belgium |
| Dimensions (H × W × D) | 492 × 270 × 155 mm |
| Weight | 1,70 kg |
*Pressure test at 25 bars.
Contents of the package
- UV lamp Cintropur UV 2100
- UV lamp with power supply and power cable
- protective quartz tube UV lamp + O-rings (3 pcs)
- stainless steel wall mounting bracket + screws (4 pcs)
- reductions/connections 3/4" (2 pcs) and 1" (2 pcs) + coupling nuts (2 pcs)
- sealing O-rings (3 pcs)
- wrench/service key
- teflon sludge draining/venting screw element
Who is it suitable for
Family homes, cottages, establishments (restaurants), laboratories, healthcare facilities, and industry – everywhere you want to have microbiologically safe water without chemicals.
