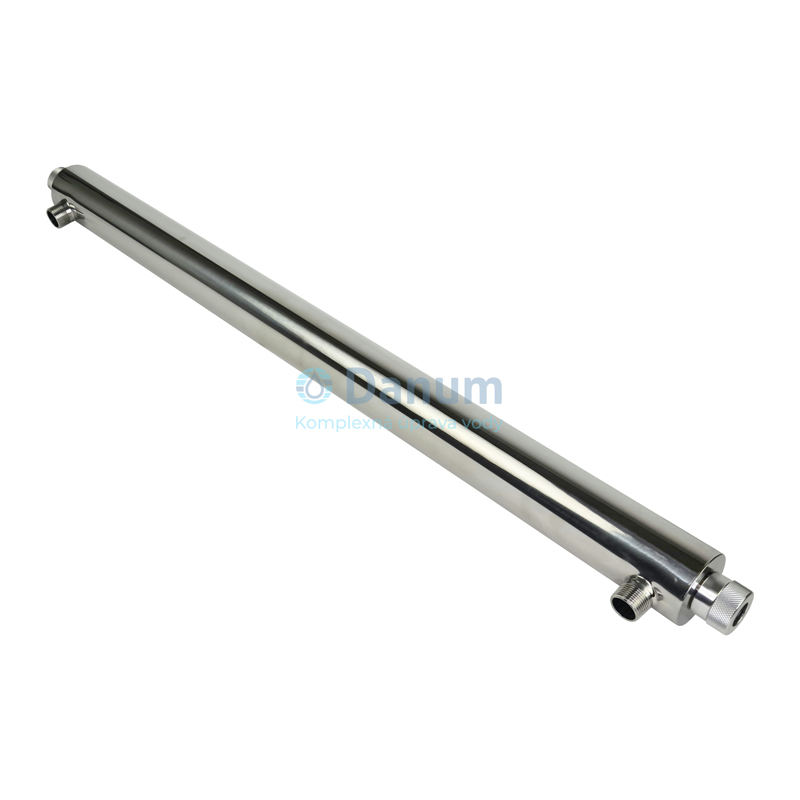

HyUV 55W Water UV Sterilizer Lamp for Home Use
The HyUV 55W UV sterilization lamp represents a reliable solution for disinfecting drinking water in family homes, cottages, and facilities supplied by wells or public water systems. Using UV-C radiation, it effectively inactivates bacteria, viruses, and other microorganisms without the use of chemicals. The water retains its natural taste, smell, and mineral content.
UV disinfection is eco-friendly, safe, and does not produce any harmful chemical byproducts. When the incoming water is properly treated, it provides a long-term and maintenance-free solution for ensuring safe drinking water for the entire household.
Flow data
| UV radiation dose | Flow |
| 16 mJ/cm²
| < 6,9 m³/h |
| 30 mJ/cm² | < 3,7 m³/h |
| 40 mJ/cm² | < 2,8 m³/h |
Technical data
| Connection | 3/4" |
| Energy consumption | 55 W |
| Water pressure | max. 6,8 bar |
| Water temperature | 2 - 40 °C |
| Durability | 9,000 hours |
| Body material | SS 304 |
| Dimensions (H×W×D) | 85 × 63,5 × 950 mm |
| Weight | 3,40 kg |
Compatible accessories:
Requirements for makeup water
| Hardness | <120 mg CaCO3/l |
| Iron |
<0,3 mg/l
|
| Manganese | <0,05 mg/l |
| COD |
<10 mg KMnO4/l |
| Amónne ions | <0,05 mg/l |
Frequently Asked Questions
Answers to the most frequently asked questions about the HyUV 55W UV lamp, its operation, maintenance, and proper use.
The UV lamp uses UV-C radiation to inactivate bacteria, viruses, and other microorganisms in water. Disinfection occurs without the use of chemicals, while not altering the taste, smell, or natural mineral content of the water. Water is immediately ready for safe use after passing through the UV reactor.
Under proper operating conditions, a UV lamp effectively inactivates a wide range of microorganisms, including bacteria (such as E. coli), viruses, molds, yeasts, and other pathogens that can compromise the safety of drinking water.
No. The UV lamp is solely for microbiological disinfection of water. It does not remove iron, manganese, water hardness, nitrates, or other dissolved substances. If the water contains these substances in elevated concentrations, appropriate water treatment must be implemented before the UV lamp.
Yes. In order for UV disinfection to achieve maximum effectiveness, the water must be sufficiently clear. Mechanical impurities or high turbidity can reduce the effectiveness of UV radiation. For well water, we always recommend including mechanical filtration and, if necessary, additional water pre-treatment.
Yes. A UV lamp is the ideal solution for family homes, cottages, and recreational properties supplied by a well. Before installation, we recommend conducting a water analysis to design the optimal combination of filtration and disinfection.
We recommend replacing the UV lamp approximately after 5,000 hours of operation, which corresponds to about one year of continuous use. Even though the lamp is still lit, its disinfection performance gradually decreases.
Yes. The quartz tube should be regularly checked and cleaned according to the water quality. Deposits of limescale, iron, or manganese can reduce the transmission of UV radiation and thus the effectiveness of disinfection.
Yes. The UV lamp is designed for continuous operation. Continuous lighting ensures immediate disinfection with every water withdrawal and also extends the lifespan of the device compared to frequent turning on and off.
No. The HyUV 55W model has a power consumption of only 55 W, which represents low electricity usage during continuous operation. Compared to the costs of ensuring safe drinking water, this is a very economical solution.
The selection primarily depends on the maximum water flow rate, the quality of the incoming water, and the desired level of UV dosage. If you are unsure about choosing the right model, we would be happy to help you design the correct solution based on a water analysis and the requirements of your household.
The package includes complete accessories for installation and commissioning, including a bulb, so you have everything you need available. We are happy to provide professional installation of the UV lamp if needed. If you have any further questions, don't hesitate to contact us, we are happy to help you.
