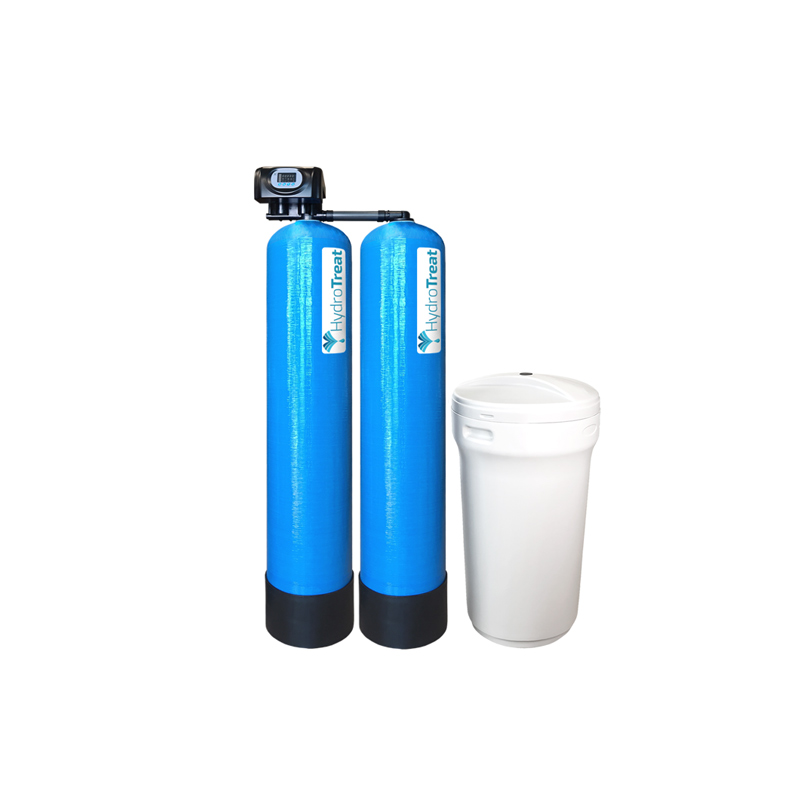

Two-module Water Filter HydroTreat ECOMIX C Duplex 2.2
Catalog code: 1354ECD3/HYS-1-D
HydroTreat Duplex 2.0 with Ecomix C material – dual-module multifunctional filter for treating well waterHydroTreat Duplex 2.0 with Ecomix C material – dual-module multifunctional filter for treating well water
HydroTreat Duplex 2.0 with Ecomix C filter media is a dual-module multifunctional filter for comprehensive treatment of well water. In one system, it removes iron, manganese, ammonium ions, organic impurities, and also softens hard water.
Thanks to the dual-module solution, it ensures continuous operation without the supply of untreated water during regeneration. While one module is regenerating, the other supplies treated water to the system.
This model is suitable for water with a high content of organic substances and helps maintain a stable quality of treated water even with fluctuations in input parameters.
Properties and advantages of HydroTreat double filters with Ecomix C material
- Comprehensive solution in one – removal of iron, manganese, ammonium ions, organic impurities, and softening of hard water.
- Stable water quality even with fluctuating parameters – the filter medium Ecomix C is suitable for treating water with a high content of organic substances. It easily copes with significant seasonal changes in water composition without fluctuations in the quality of the treated water.
- Pure water without a metallic taste and odor – improves the color of the water, eliminates unpleasant smells, and ensures a pleasant taste.
- Completely automatic operation without worries – the device is pre-set and does not require programming after installation.
- Continuous operation without the supply of untreated water during regeneration – after the regeneration is initiated, the control head automatically redirects water treatment to the second module.
- Control head with a dynamic LED display – shows the current time, remaining volume of water for regeneration, and indicator bars that show the current status and mode of the device.
- Ideal also as a pre-treatment for reverse osmosis – the device helps prepare water for reverse osmosis systems and protects them from excessive load.
- Economical regeneration with low salt consumption – regeneration occurs as needed by the device, usually at a set time, for example, during the night hours.
- System safety and protection – overflow protection, built-in protective tube, and salt grid increase the reliability and safety of operation.
- Compact and space-saving solution – suitable even in places where space needs to be saved during the installation of water treatment technology.

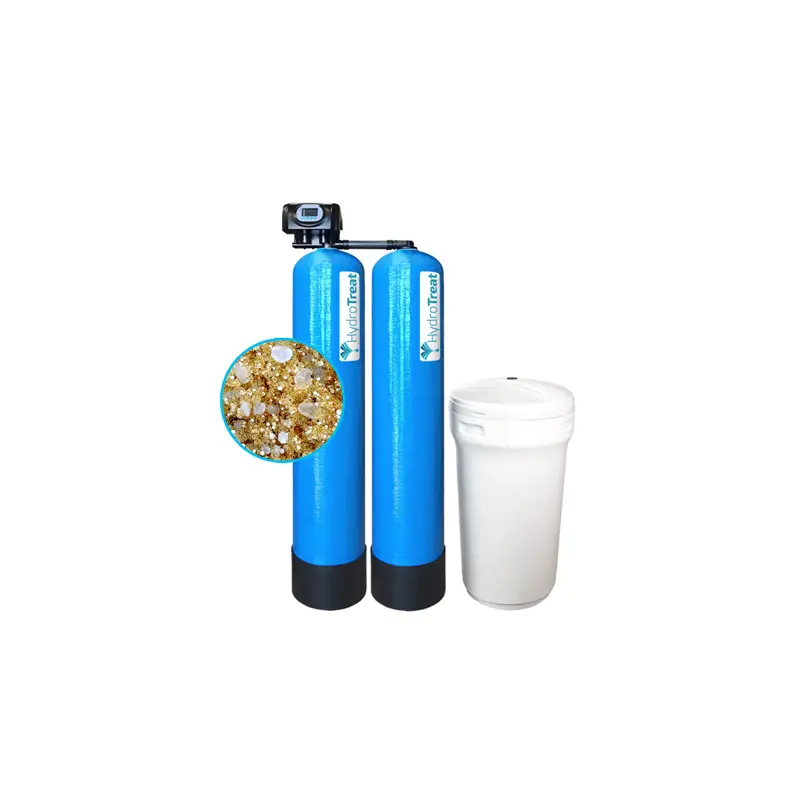

What is Ecomix material?
The multifunctional filtration material Ecomix C is a multi-component filtering material designed for the treatment of problematic well or tap water with a high content of organic substances. It helps achieve clean, soft, and well-treated water for everyday use.
The Ecomix filter medium is regenerated with saltthat needs to be monitored to ensure that a sufficient amount is available for regeneration purposes. Regeneration occurs automatically through the control head – the device draws in and flushes the salt solution. In typical sizing, regeneration is estimated to occur approximately once a week, and it is important to know the water hardness and the maximum hourly and monthly consumption for designing the correct filter size.
Technical parameters
- Size and type of connection: 1" external thread
- Flow capacity: 1.6 – 2.0 m³/h
- Min. required flushing: 1.20 m³/h
- Filter area: 0.08 m2
- Quantity and type of material: 2 × 62.5 l – Ecomix C
- Brine tank volume*: 145 liters
- Size of pressure tanks: 12" × 48" × 2.5"
- Dimensions**(H×W×D): 1568 × 1214 × 516 mm
- Weight (dry, without salt): 131.8 kg
* Modules can be up to 3 m apart.
** The dimensions are provided based on the placement of the pressure tank and the brine tank next to each other. The height of the device is measured from the floor to the top of the head.
Flow velocities
- Operation: 20–25 m/h
- Backwashing: 10–15 m/h
- Regeneration: 3–5 m/h
Regeneration consumption
- Salt consumption/regeneration: ~100 g/1 l Ecomix
- Water consumption/regeneration: <10 l/1 l Ecomix
Operating conditions and requirements for source water
- Optimal bed height: 800 mm
- Minimum bed height: 500 mm
- Free content: ≥ 40% of the bed height
- Total Dissolved Solids (TDS): ≤ 4000 mg/l
- Water temperature: 4–40 °C
- pH range of water: 5.0–9.0
- Hardness (CaCO₃): ≤ 750 mg/l ≈ 42 °dH
- Iron: ≤ 15 mg/l
- Manganese: ≤ 3 mg/l
- CHSK-Mn (KMnO4): ≤ 20 mg/l
- Ammonium ions: ≤ 4 mg/l
- Chlorine: ≤ 0.5 mg/l
We recommend
- We recommend installing before the water softener mechanical pre-filterthat prevents the entry of floating impurities (sand, rust, clay, etc.) that could damage the mechanical components of the softening device.
- To choose the right size, you need to to know the hardness value of waterthe peak hourly and average monthly water consumption, and last but not least, also take into account other values such as iron, manganese, ammonia, and organic water pollution. To do this, it is essential to have, or perform a water analysis.
. If you need help determining the correct size, don't hesitate to contact us.
