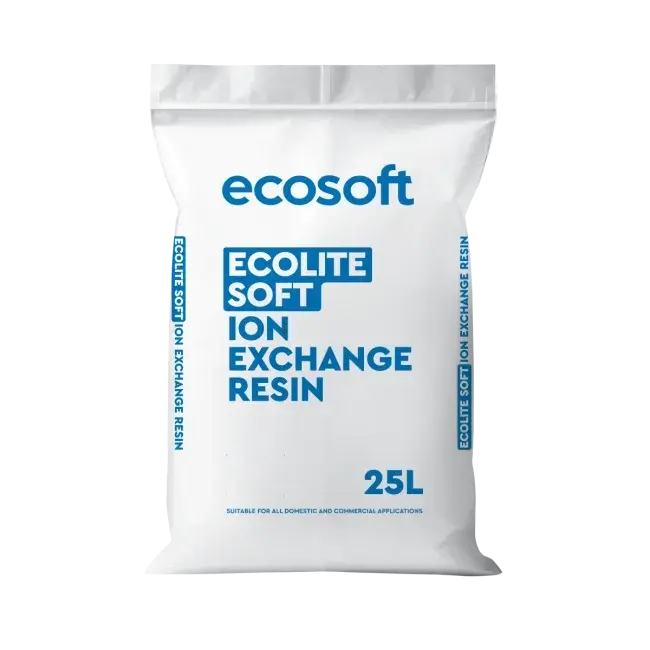

Ecolite Soft – strongly acidic cation exchange resin in Na-cycle for water softening

Ecosoft Ecolite Soft is a high-capacity gel-type cation exchange resin in sodium form, designed to reduce water hardness in both residential and commercial water softeners. The resin beads capture calcium and magnesium from the water, thus protecting plumbing, heaters, and appliances from limescale.

Why Ecolite Soft is a good choice

• Effectively removes calcium and magnesium from water – the cause of limescale.
• Chemically, physically, and thermally stable resin for long-term consistent performance.
• Round gel beads ensure even flow and effective regeneration.
• Regeneration with regular brine (NaCl) – e.g. tablet salt.
• Typical lifespan is 3–5 years under normal operation.
• WQA Gold Seal Certificate.
• Suitable for replacing the cartridge in both residential and commercial water softeners.

Technical parameters

• Resin type: strongly acidic cation exchange resin (SAC), gel
• Matrix: polystyrene cross-linked with divinylbenzene (DVB)
• Functional group: sulfonic (SO₃⁻)
• Ion form: Na⁺
• Total exchange capacity: min. 1.9 eq/l
• Working capacity: approx. 50 g CaCO₃/l
• Grain size: 0.3–1.2 mm (≥ 95 %), 16–50 mesh
• Water content: 45–51 %
• Bulk density: 770–845 g/l
• Max. operating temperature: 120 °C
• Flow during operation: 8–40 BV/h
• Minimum bed height: 0.6 m
• Packaging: 25 l / 20 ± 1 kg

Requirements for source water

• Hardness (CaCO₃): ≤ 750 mg/l ≈ 42 °dH
• Iron: ≤ 0.2 mg/l
• Manganese: ≤ 0.05 mg/l
• Oxidizability (CODMn): ≤ 5 mg O₂/l
• Free chlorine: ≤ 0.5 mg/l

We recommend

• Install before the softener mechanical pre-filter (20–100 µm), which captures sand, rust, and other impurities and extends the lifespan of the resin.
• If the water contains more iron or manganese than mentioned above, pre-treatment is necessary. Before selection, you have the water analyzed.
• It is important to know for proper sizing water hardness and peak hourly and monthly water consumption.

Do you need help with replacing the cartridge or the size of the device? Feel free to contact us.
